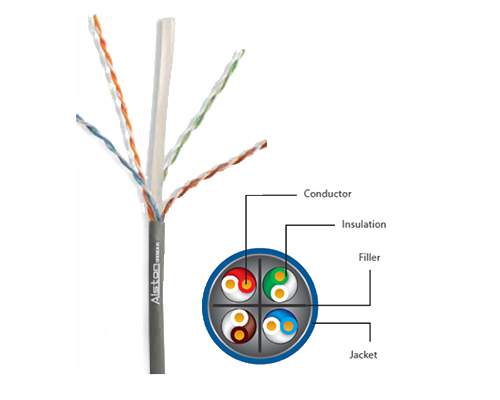

Cat 6 UTP Cable 4 Pairs
.png)
Product Description:
Alston Systems Category 6 components comply with requirements as per standard ANSI/TIA 568-C.2, ISO/IEC
11801 ED.2, EN 50173-1m, these consist of complete Category 6 Channel to fully support the corresponding protocols & communication services.
Standard Compliances
• ISO /IEC 11801:2002(Ed.2.0) including amendments A1:2008 and A2”2010
• IEC 61156-5:2009 (Ed2.0)
• EN 50173-1:2011, EN50173-2:2007 including amendment A1:2010, ANSI/TIA-568-C.2:2009
Features and Benefits
Tape design engineered for smaller overall diameter and ease of installation Characterized and tested to 250MHz.
Positive PSACR up to 300MHz for future bandwidth requirements. Unique product specific packaging for ease of identification.
Every master reel is tested to ensure electrical performance compliance.
Print legend contains footage making from 305M to 0M or 500M to 0M. ROHS complaint, UL Listed & ETL/ EC.
Applications
• IEEE 802.3:1000BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T
• ANSI/TIA/EIA-854:1000BASE-TX
• 155 Mb/s, 1.2 Gb/s ATM
• ANSI X3.263:100 Mb/s, IEEE 802.3af DTE Power (POE)
• 4/16 Mb/s Token ring, Digital Video, Broadband and baseband Analog Video
