SProduct Description:

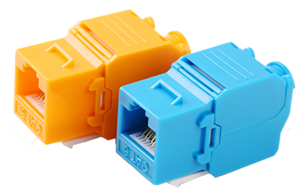

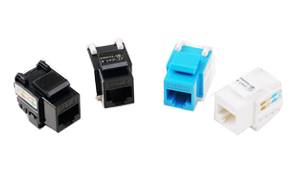

Alston Systems This series keystone jacks work together with high speed cables, cords and panels to provide performance beyond proposed Category 6A
standards, a new feature of this series jack is a universal colored wring label that elimates the need for separate codes for T568A/B wring scheme.
Specifications
• Meets ANSI/TIA/EIA-568-B.2-1 requirements
• Meets ISO/IEC 11801
Material
• Housing: FR and IR PCB (_re-retardant and
• impact-resistant polycarbonate) UL 94V-0
• Pin contacts: phosphor bronze alloy plated with 50 micro-inch of gold IDC: for 22-26 AWG cable
Environmental Conditions
• Storage temperature: -40°C - +70°C (-40°F to +158°F)
• Operating temperature: -10°C - +60°C (+14°F to +140°F)
• Relative humidity: 93%
Electrical Characteristics
• 230V AC/115V AC
• Meets UL 1863
• Current rating: 1.5 A max
• Voltage rating: 150 V max
• Insulation resistance: 500 MOhm min at 100 V DC
• Dielectric withstand voltage: 1000 V AC RMS, 60Hz for 1min
• Contact resistance: 20 MOhm max
• IDC Contact resistance: 2,5 MOhm max
