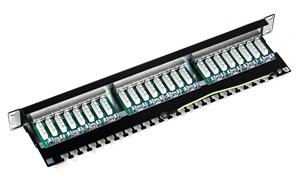

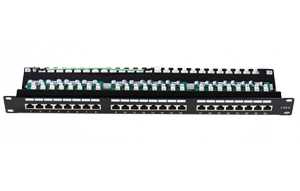

Shielded Patch Panel
Product Description:
Alston Systems 180° unshielded keystone jack is in classical design, the dual type IDC accepts
22-26 AWG solid cables, easy terminated with 110 or Krone tools, supports T568 A&B wiring with its good & stable performance,
Specifications
• Meets ANSI/TIA/EIA-568-B.2-1 requirements
• Meets ISO/IEC 11801
Material
• Housing: FR and IR PCB (re-retardant and impact-resistant polycarbonate) UL 94V-0
• Pin contacts: phosphor bronze alloy plated with 50 micro-inch of gold
• IDC: for 22-26 AWG cable
Environmental Conditions
• Storage temperature: -40°C - +70°C (-40°F to +158°F)
• Operating temperature: -10°C - +60°C (+14°F to +140°F)
• Relative humidity: 93%
Electrical Characteristics
• 230V AC/115V AC
• Meets UL 1863
• Current rating: 1.5 A max
• Voltage rating: 150 V max
• Insulation resistance: 500 MOhm min at 100 V DC
• Dielectric withstand voltage: 1000 V AC RMS, 60Hz for 1min
• Contact resistance: 20 MOhm max
• IDC Contact resistance: 2,5 MOhm max
